Investment Casting Stainless Steel Screwed Gate Valves Customization and Currency US

Model NO. : Z11F-800WOG

Thread Position of Valve Rod : Inside Gate Valve

Application : Industrial Usage, Water Industrial Usage, Household Usage

Size : Dn15-150

Transport Package : Carton

Specification : CE/SGS/ISO9001

Trademark : Xuteng

Origin : China

HS Code : 8481801090

Supply Ability : 1000PCS/Month

Package Size : 150.00cm * 150.00cm * 150.00cm

Package Gross Weight : 500.000kg

Material : Stainless Steel

Connection Form : Thread

Seal Surface : Wedge Gate Valve

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : Zhejiang China

Certification : CE/SGS/ISO9001

MOQ : 1

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Price : negotiate

Contact Now

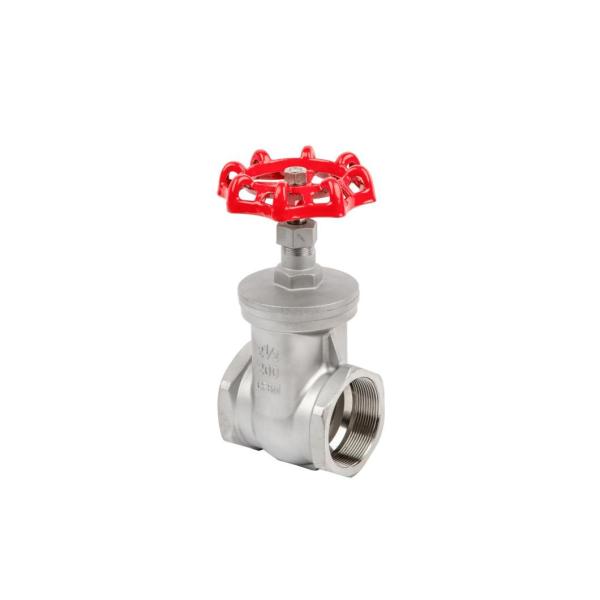

Investment Casting Stainless Steel Screwed Gate Valves Customization and Currency US

Investment casting body / bonnet
Materials: ASTM A351-CF8M
Pressure temperature rating: 200 PSI (PN16) Pressure temperature rating: 350 deg. F
Inside screw and screwed bonnet, wedge disc, integral seat, non-rising stem and handwheel.
Threaded end: BSPT, NPT, DIN259, DIN2999
Standard materials of parts

Item	Parts	Material
1	Body	CF8M
2	Bonnet	CF8M
3	Stop ring	SS304
4	Stem	SS316
5	Packing	RPTFE
6	Handwheel nut	SS304
7	Handwheel	Aluminum
8	Packing nut	SS316
9	Gland	SS304
10	Lock nut	SS316
11	Gasket	RPTFE
12	Disc	CF8M

Dimensions (in mm & inch) and weight

Size	D	L	H	D1
1/2"	15	55	92	70
3/4"	20	60	99	70
1"	25	66	113	80
1.1/4"	32	76	128	80
1.1/2"	40	86	147	90
2"	50	96	168	100
